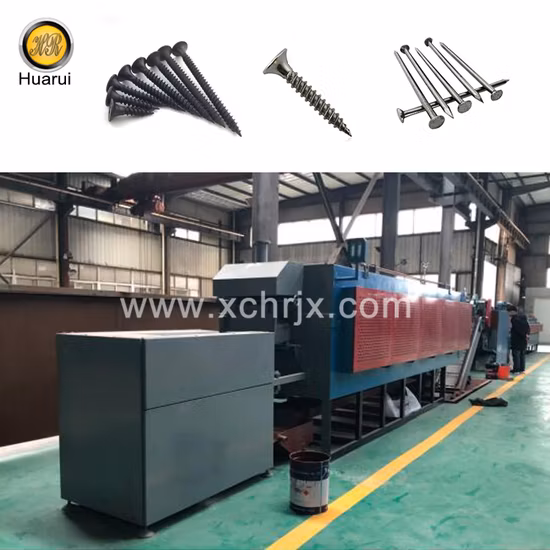

Mesh Belt Continuous Bringht Annealing Electric Resistance Furnace From Julia
Description
Basic Info.
| Model NO. | YLBH |
| Voltage | 260V |
| Wid Th | 200 |
| Mesh Belt | 120 |
| Transport Package | Standard Export Packing |
| Specification | 2m*1.5m*1m |
| Trademark | Ansteel |
| Origin | Liaoning, China(Mainland) |
| HS Code | 8514109000 |
| Production Capacity | 100sets/Week |
Product Description

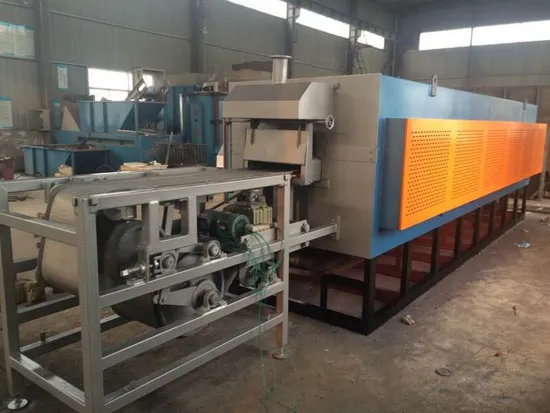

Product DescriptionContinuous Mesh Belt Sintering or Reduction Furnace fabricated are continuous resistance furnaces tailored to PM industry for the sintering of PM articles or reduction of metal powders. Belt furnaces consist of furnace body, belt conveying system and temperature control system.
Furnace body includes feeding zone, pre-sintering zone, sintering zone, slow cooling zone, water cooling zone and unloading zone.
Belt convey system consists of high temperature resistant mesh and transmission devices, in which mesh speed is adjustable by a frequency adjustor and mesh speed is readable on the digital measure device.
Temperature control system includes thermal couples, intellectual digital PID adjustor and SCR to ensure precise control of temperature.
Specifications and types | YL-150/65-5-T | YL-220/80-5 | YL-320/100-5 | YL-400/100-6 | YL-610/125-8 |
Mesh belt width (mm) | 150 | 220 | 320 | 460 | 610 |
Muffle effective dimension (mm) | 170×65 L2=2300 L3=2900 | 240×80 L2=2750 L3=3850 | 340×100 L1=2200 L2=2750 L3=4800 | 480×100 L1=2400 L2=3700 L3=5100 | 640×125 L1=2600 L2=4500 L3=6500 |
Number of heating zones | 5 zones | 5 zones | 5 zones | 5 zones | 5 zones |
Gas consumption(Nm3/h) | 6 | 10 | 15 | 20 | 30 |
Highest temperature () | 1150 | ||||
Rated heating power (kw) | 60 | 90 | 120 | 180 | 300 |
Rated voltage V | 380 | ||||
Mesh belt speed | Stepless speed regulation by frequency adjustor | ||||
Mesh belt materials | SUS310SSUS314S | ||||
Muffle materials | SUS304S, SUS310S and Si3N4 enforced SiC | ||||
Overall dimension (about) (mm) | 1250×1650×10500 | 1300×1650×12300 | 1400×1800×19000 | 1620×1800×21000 | 2000×1950×23000 |
Liaoning JinRong Machinery Import and Export Co.,LTD,AnShan Ying Yat Trade Co.,Ltd, located in the northeast region of the largest steel industry city,it has the reputation of "the steel capital of the republic"--Anshan. The specific address is Qianshan West Road, Tiexi District, Anshan City, Liaoning Province. We always adhere to the customer first, with sincere service to impress customers, to "honest and trustworthy, customer first" as the principle, and in terms of products and to "quality-oriented, keep improving" as their own practice standards, and strive to provide customers with a full range of quality services at the same time, but also make the enterprise get long-term development. Machinery equipment production and processing machinery industry quality enterprises. The company mainly metallurgical equipment, with research and development, design, production, installation, commissioning, trial production, one-stop services. We mainly produce rolling equipment, continuous casting equipment and auxiliary equipment for steel mills.Wire, bar, strip, section steel and other long steel rolling production line equipment manufacturing and engineering contracting services. Full experience of steel production line general contracting service. Various mature steel rolling production lines can be customized according to user requirements, such as high-speed bar, high-speed wire, sectional material, H steel, strip steel, ordinary bar, ordinary wire, etc. It can provide process design, equipment manufacturing, equipment installation, equipment debugging, etc. of all equipment in the production line, shortening the production time for customers, improving market competitiveness faster, and creating economic benefits faster.
According to the actual needs of users, the annual output of our production line can range from tens of thousands of tons to more than one million tons; the rolling speed can range from 5m / S (or even lower) to 105m / S; the operation control ability of the equipment can range from manual auxiliary operation to fully automatic operation; the total investment of the project can range from millions of yuan to more than 100 million yuan, fully meeting the needs of users. Industrial automation equipment. In metallurgical industry, factory power distribution, electrical automation control design, metallurgical electrical equipment including high-speed wire, bar, strip and other DC speed control equipment, continuous casting automatic control system, blast furnace and converter automatic control system, etc. The company has established many steel production lines, continuous casting and rolling high-speed bar production lines for many countries, and has rich experience in general contracting of steel production lines. Excellent after-sales service, products have been highly praised by users. The company produces and processes 2-high temper mill, 4-high reversing cold mill, 6-high reversing cold mill, 12 high mill, 3-continuous mill, 4-continuous mill, 5-continuous mill, hot rolling mill, finishing mill, straightener, pickling line, etc. Focus on the production of heavy-duty cold and hot rolling mills, hot rolling mills, wire rod mills, rebar mills, section steel mills, strip mills, H-beam mills, continuous casters, slab continuous casters, and billet continuous casters , Rectangular billet continuous casting machine, special-shaped continuous casting machine, ingot casting machine, various large riveting and welding parts, and various machining parts, various large castings, and various mechanical accessories, as well as making various furnaces for smelting. Blast furnace, converter, refining furnace, intermediate frequency furnace, electric arc furnace, submerged arc furnace, heating furnace, our equipment from smelting to continuous casting to steel rolling, continuous casting and rolling, equipped with dozens of large CNC milling and boring machines, 5m*16m, 3.2m *16m CNC gantry milling machine, four-axis vertical machining center, 6.3m vertical lathe, 3.2m gear hobbing machine and more than 250 various metal cutting machine tools, with 200t, 100t, 75t, 50t, 32t and other bridge cranes. Riveting Welding and machining have become one of the machining bases with strong comprehensive processing capabilities. The company's mechanical equipment and leading turnkey projects are more favored and praised by customers all over the world.
